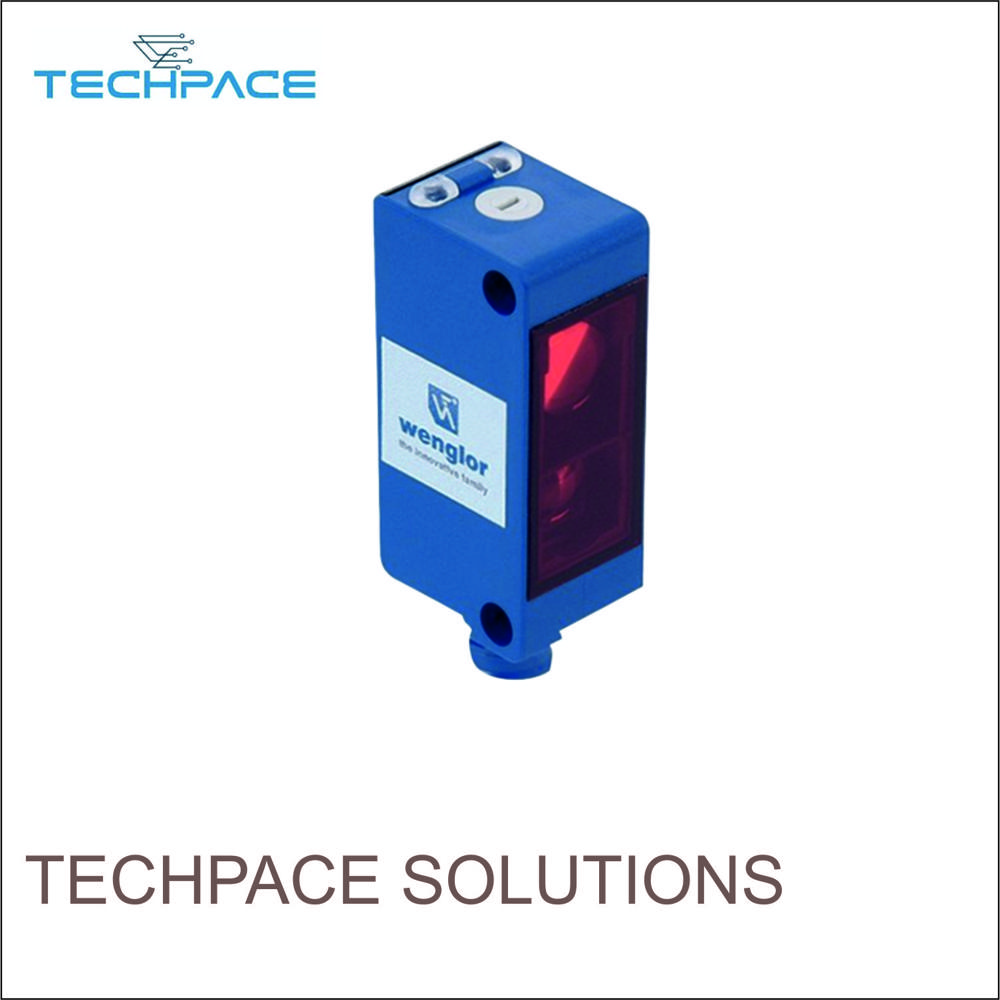

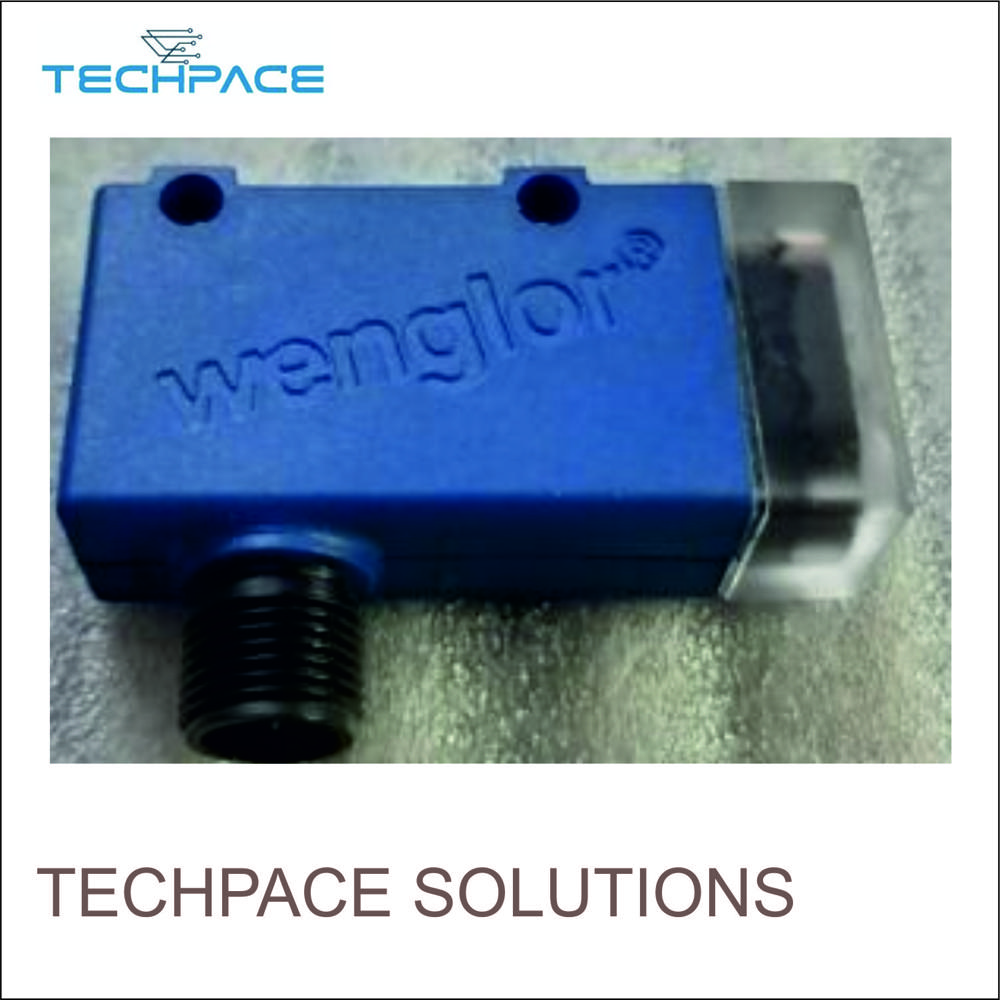

WM03NCT2S614 Print Mark Reader( Wenglor )

Send Inquiry

Request To Call Back

WM03NCT2S614 Print Mark Reader( Wenglor )

Name: WM03NCT2S614 Print Mark Reader( Wenglor )
Brand: Techpace Solutions
Price: 13000.0 INR
Availability: InStock

Price 13000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

WM03NCT2S614 Print Mark Reader( Wenglor ) Specification

Measurement Range
9 mm (distance to object: 12 mm)

Interface
RS-232, IO-Link (optional)

Signal Type
Digital

Mounting Type
Through-hole, surface mount

IP Rating
IP67

Application
Detection of colored register marks on foils and packaging materials

Sensitivity
Adjustable via teach-in

Wireless
No

Cable Length
2 m

Features
Compact design, red light LED, teach-in function, high switching frequency

Response Time
50 s (switching time)

Operating Temperature
-10C to +60C

Power Consumption
30 mA

Sensor Type
Color mark sensor, optical

Product Type
Print Mark Reader

Material
Plastic, Stainless Steel

Input
Digital (PNP/NPN)

Output
Digital Output, PNP/NPN selectable

Function
Detection of registration marks and colored print marks

Usage
Industrial automation, packaging and labeling lines

Accuracy
0.05 mm

Resolution
16-bit, 31 m

Voltage
10-30 V DC

Weight
Approx. 110 g

Adjustment
Teach-in button and remote input

Indicator
LED status indicator for operation and switching

Enclosure Material
ABS/metal composite body

Storage Temperature
-25C to +70C

Compliance
CE certified

Housing Dimensions
50 x 50 x 21 mm

Operating Humidity
35% to 85% RH (non-condensing)

Connection Type
Cable with open wire ends

Protection
Short-circuit and overload protection

Light Source
Red light, LED, 640 nm

Switching Frequency
10 kHz

WM03NCT2S614 Print Mark Reader( Wenglor ) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About WM03NCT2S614 Print Mark Reader( Wenglor )

These sensors have been specially designed to recognize print marks. They have a very small spot and use a white light LED with long service life. Only one sensor is required for the recognition of all color combinations, as well as the difference in brightness between print marks and the background.

Versatile Print Mark Detection

The WM03NCT2S614 Print Mark Reader is engineered for fast and precise detection of colored register marks on packaging foils and materials-ideal for high-speed production lines. Its high accuracy and sensitivity adjustments ensure reliable operation, even with varying print qualities or color contrasts.

Reliable and Rugged Construction

Built with a compact ABS and stainless steel composite body, the sensor meets IP67 protection standards, making it resistant to dust, water, and rigorous industrial environments. The 2-meter cable with open wire ends and flexible mounting options support seamless integration into existing systems.

Simple Setup and Adjustment

Operators can configure the sensor easily via its teach-in button or remote input. The LED status indicators provide quick confirmation of operational and switching statuses, minimizing downtime and simplifying both installation and maintenance procedures.

FAQ's of WM03NCT2S614 Print Mark Reader( Wenglor ):

Q: How do I adjust the sensitivity of the WM03NCT2S614 Print Mark Reader?

A: You can adjust the sensitivity of the sensor through the teach-in button or via a remote input. This allows for optimal detection of different colored marks under varying conditions, ensuring accurate performance on various packaging materials.

Q: What are the primary applications of this print mark reader?

A: The sensor is primarily used in industrial automation settings-particularly on packaging and labeling lines-for accurate detection of colored register marks on foils or packaging material to ensure precise positioning during cutting or printing processes.

Q: When should the WM03NCT2S614 be replaced or maintained?

A: Routine maintenance is minimal due to the sensor's durable construction and IP67 protection. However, inspect regularly for dust or debris on the lens and check wiring integrity. Replacement is typically necessary only if performance decreases or the sensor exhibits physical damage.

Q: Where can I install the print mark reader within my production line?

A: This sensor is suitable for through-hole or surface mounting in any automated packaging, labeling, or printing machinery. With its compact 50 x 50 x 21 mm housing and 2-meter cable, it can be easily integrated even in limited spaces.

Q: What process does the sensor use to detect marks, and what types of output does it provide?

A: The sensor uses a red LED to detect contrasts between colored print marks and background materials. It features adjustable digital output (selectable PNP/NPN) for connection to a variety of industrial controllers or monitoring devices.

Q: What are the key benefits of choosing this sensor for my application?

A: Key advantages include its high detection accuracy (0.05 mm), rapid response time (50 microseconds), compact design, robust enclosure, and easy teach-in adjustment. It meets CE certification and offers short-circuit and overload protection for extra reliability.
