WENGLOR SENSOR P1KH001

Price 12000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

About WENGLOR SENSOR P1KH001

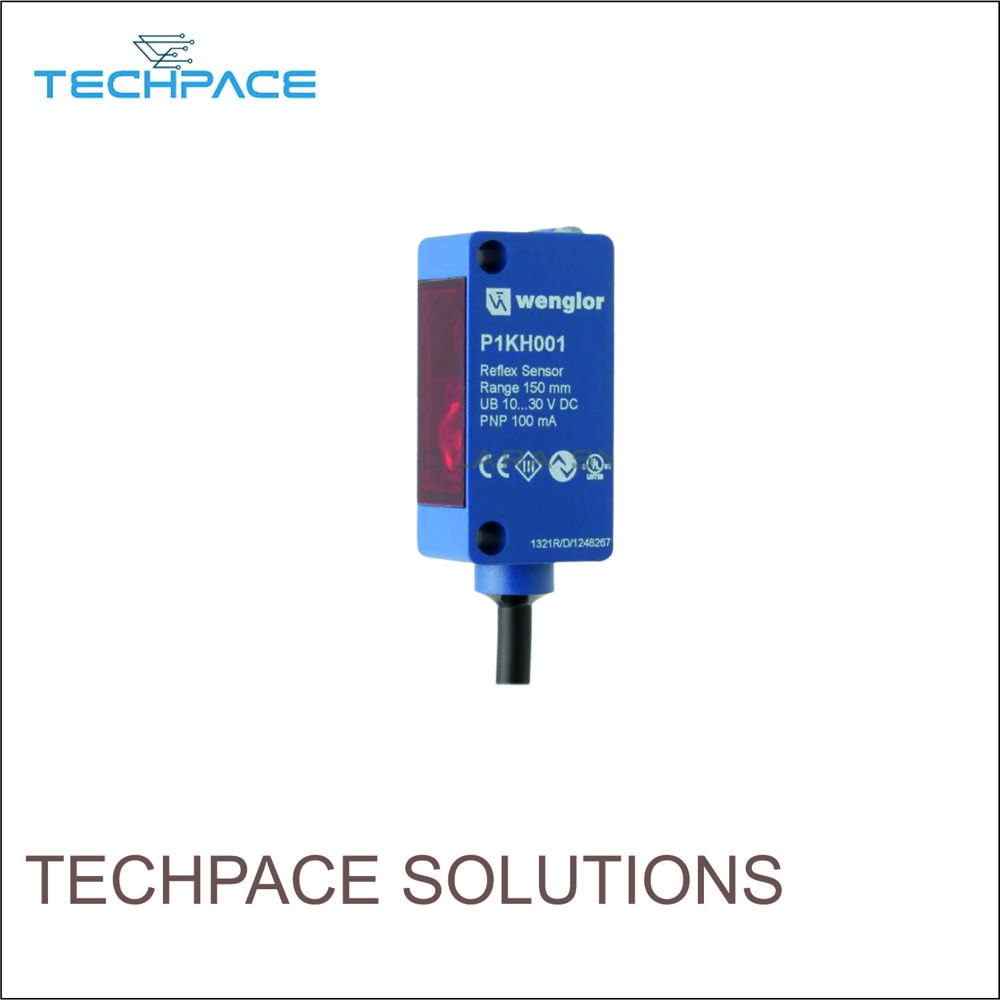

The product code P1KH001 refers to a reflex sensor with background suppression manufactured by Wenglor. This type of photoelectric sensor uses red light and an angle measurement principle to reliably detect objects, regardless of their color, shape, or surface texture, even against a reflective or bright background.

Key specifications

Sensor Type: Reflex sensor with background suppression.
Light Source: Red LED light.
Range: Up to 150 mm.
Adjustable Range: The detection range is adjustable from 30 to 150 mm.
Detection Method: Works on the angle measurement principle, making its detection distance independent of the object's color or surface properties.
Interface: Features an IO-Link interface for configuration, status monitoring, and reading distance values.

Electrical Data:
- Supply Voltage: 1030 V DC.
- Current Consumption: Less than 20 mA at 24 V DC.
- Switching Frequency: Up to 1000 Hz.
Physical Features:
- Housing Material: Plastic.
- Protection Rating: IP67/IP68.
Temperature Range: -40 to +60C

Common applicationsThis type of sensor is particularly useful in industrial automation for tasks such as:

Detecting objects against any type of background, including reflective or bright surfaces.
Distinguishing between parts of varying colors and shapes.
Reliably detecting minimal height differences between objects.
