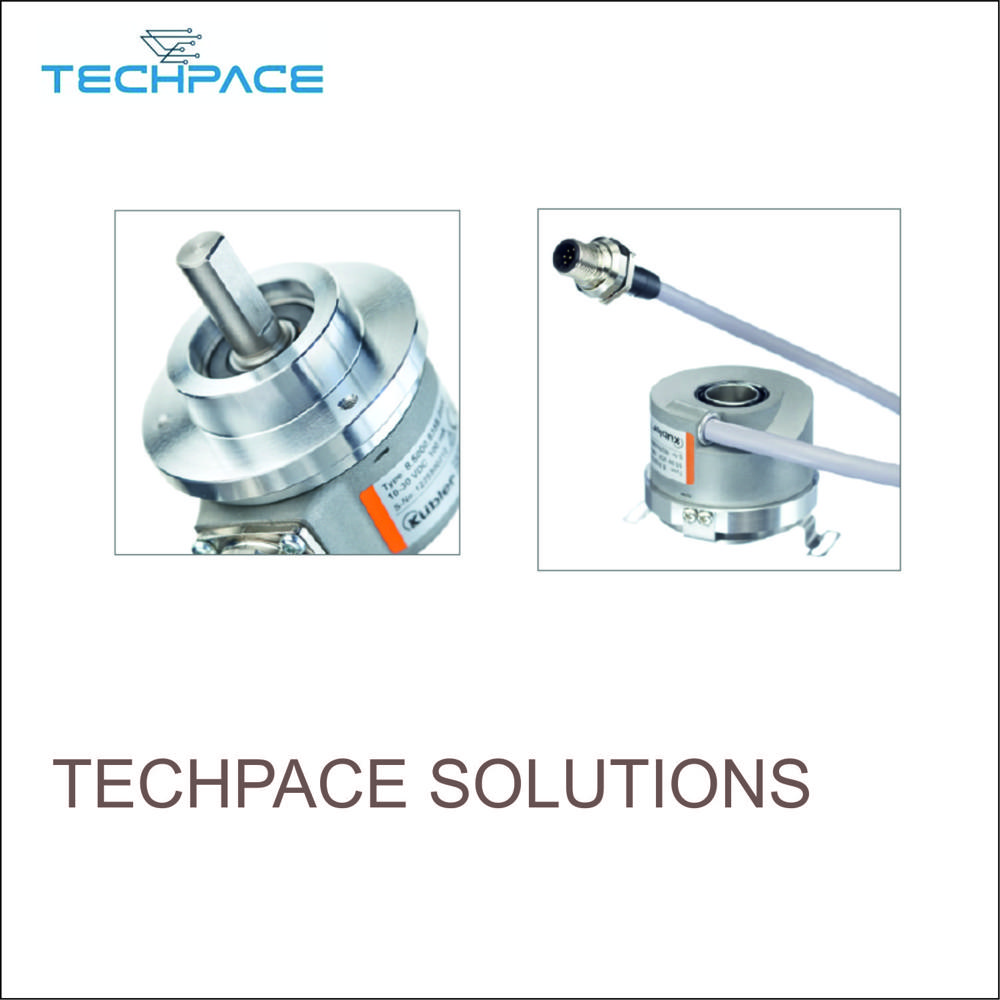

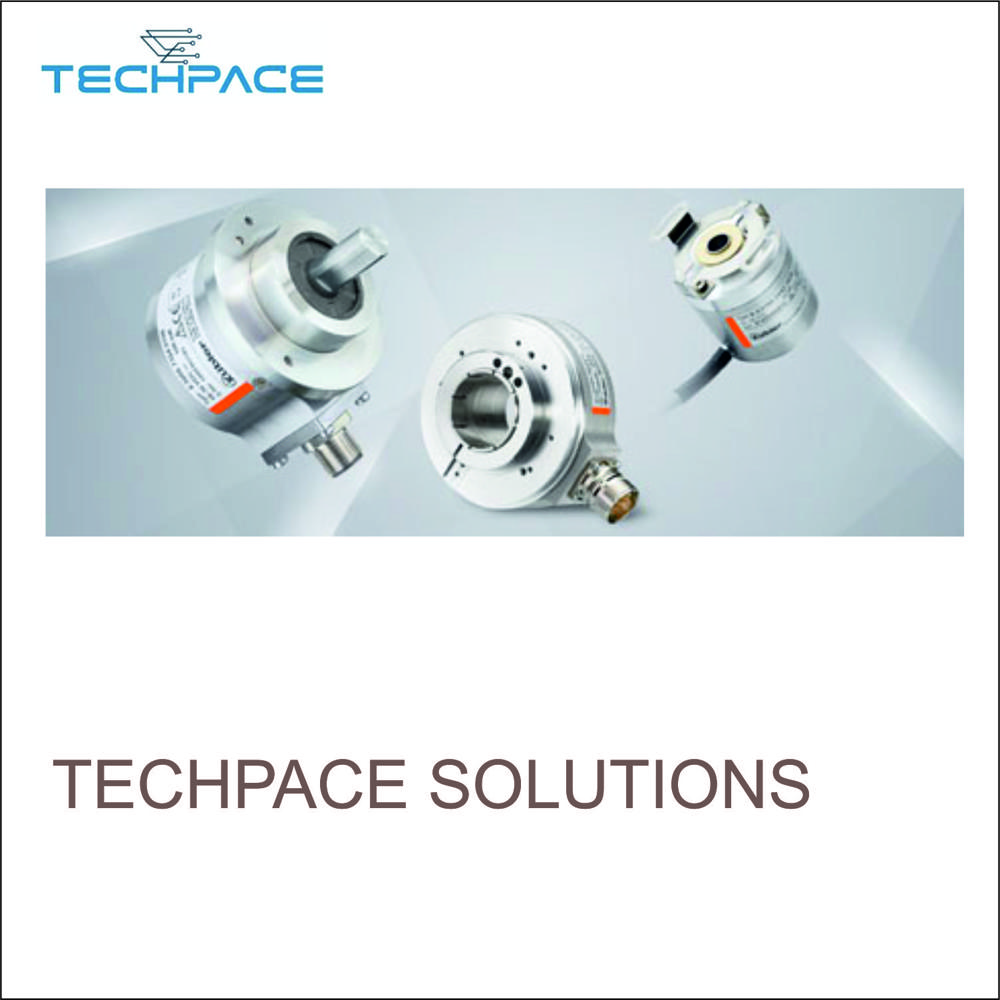

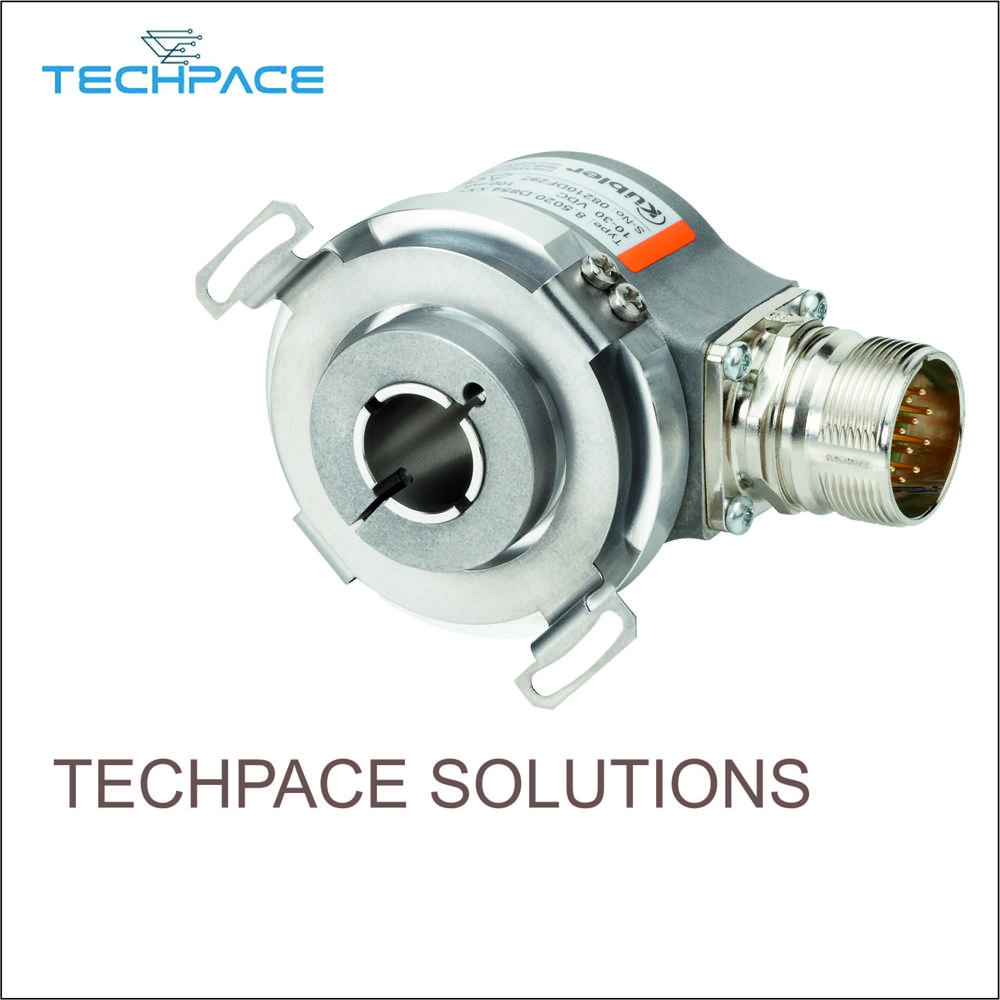

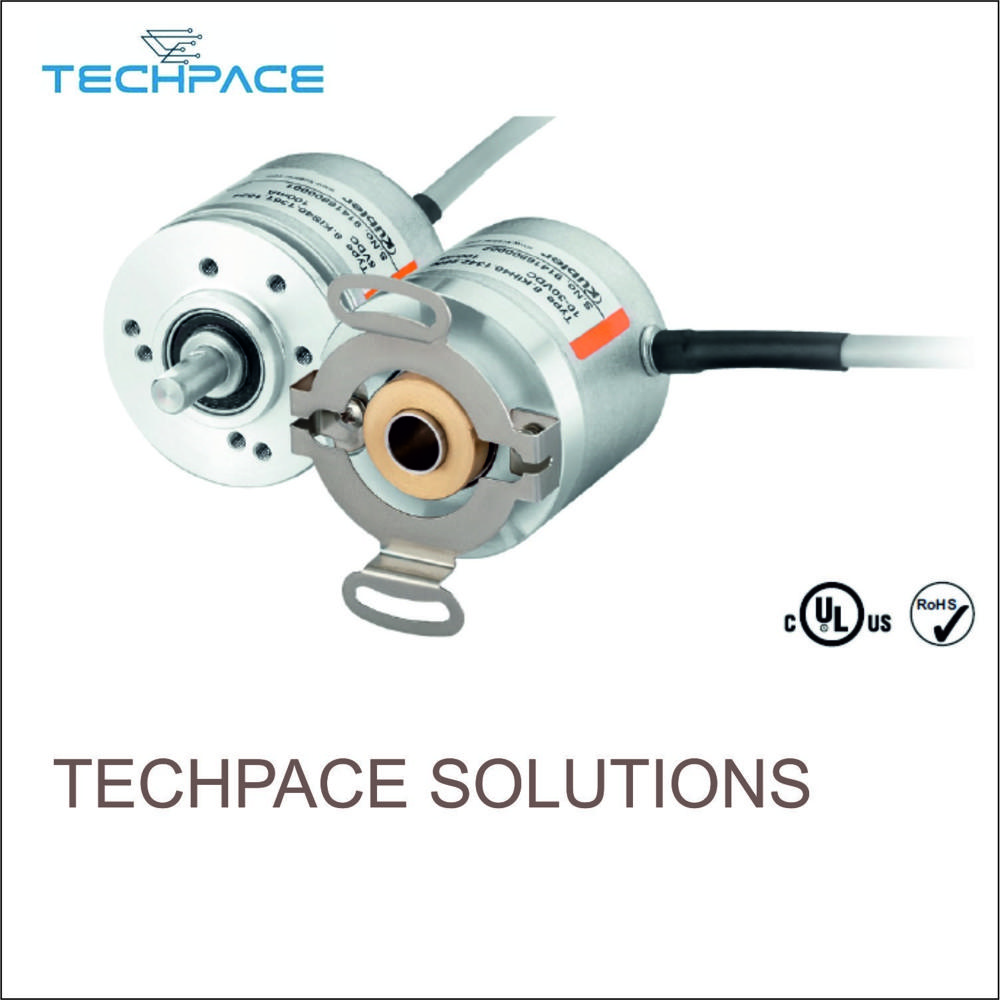

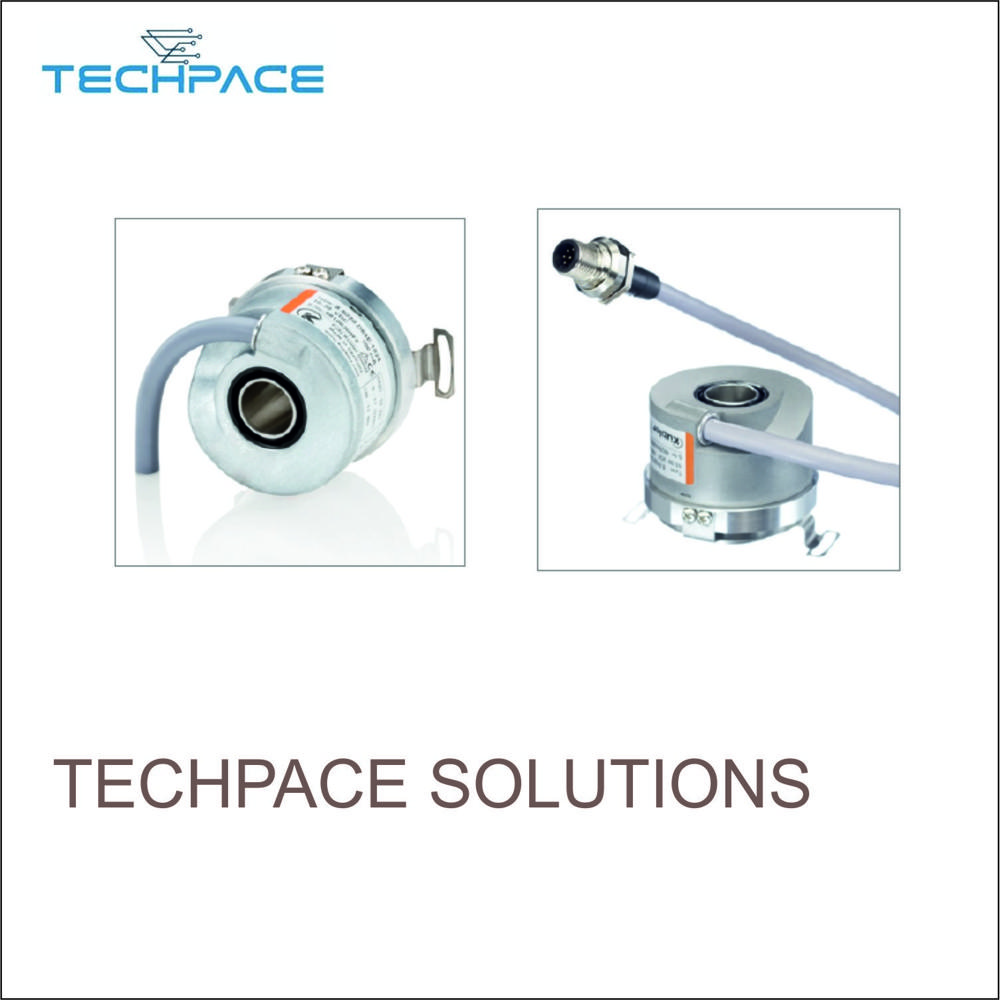

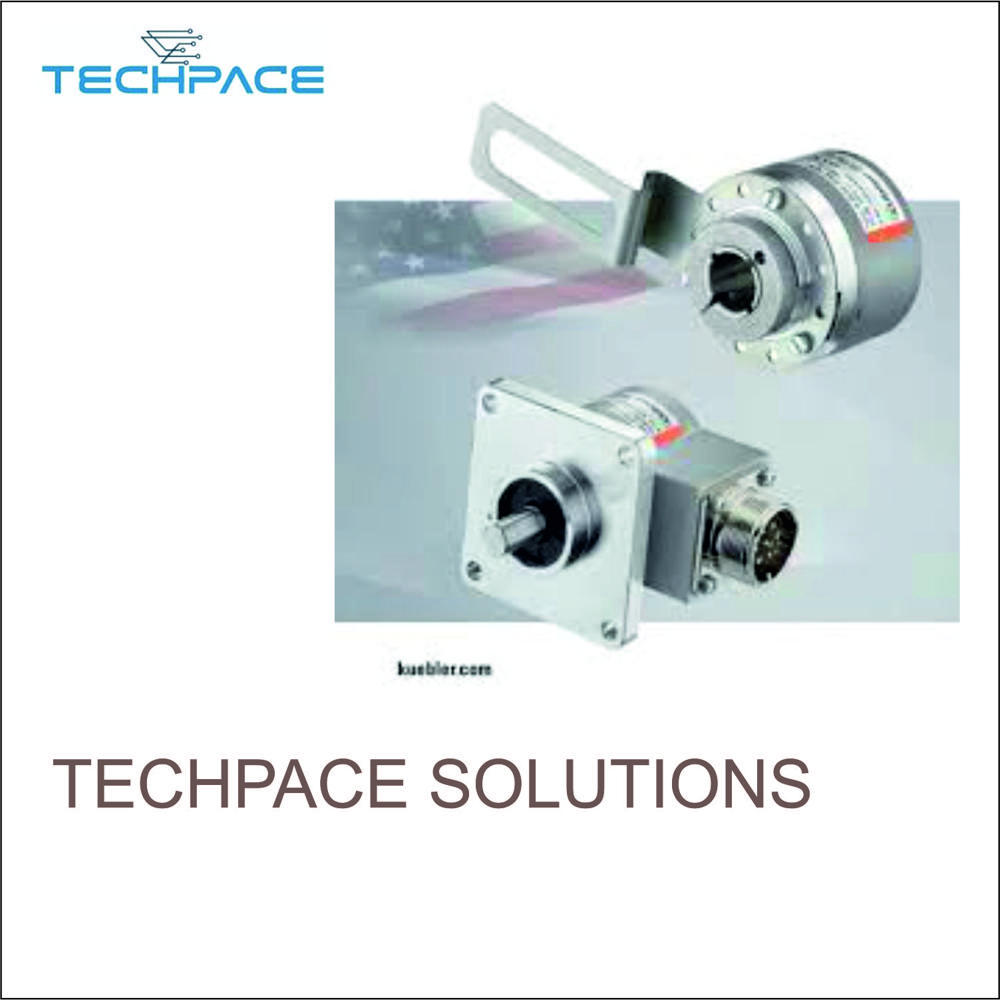

8.KIH50.4A51.1024 Incremental Encoders

Name: 8.KIH50.4A51.1024 Incremental Encoders
Brand: Techpace Solutions
Price: 6500.0 INR
Availability: InStock

Price 6500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

8.KIH50.4A51.1024 Incremental Encoders Specification

Surface Finish
Anodized

Humidity %
35-85% RH

Efficiency
High

Operating Temperature
-20C to +85C

Shape
Round

Overheating Protection
YES

Insulation Material
ABS

Mounting Type
Flange Mount

IP Rating
IP65

Feature
High Precision, Shock Resistant

Connector Type
Pre-wired Cable

Product Type
Incremental Encoder

Application
Automation, Position Feedback, Motor Control

Protection Level
IP65

Frequency (MHz)
0-300 kHz

Rated Voltage
5-30V DC

Energy Consumption
Low

Output Type
A/B/Z (Quadrature)

Color
Black & Silver

Dimension (L*W*H)
50 x 45 mm

Weight
250g

Size
50 mm

Input Voltage
5-30V DC

Phase
Single Phase

Material
Aluminum Alloy

Connection Type
Cable Output

No Of Poles
4

Vibration Resistance
50 m/s2, 10-2000 Hz

Sensing Method
Optical

Output Signal
NPN/PNP Open Collector, Push-Pull, TTL Available

Life Expectancy
Over 10 million revolutions

Maximum Rotation Speed
5000 RPM

Cable Length
2 meters standard

Housing Material
Aluminum alloy, black anodized

Dielectric Strength
500V AC for 1 min

Response Time
1s

Shaft Diameter
8 mm

Storage Temperature
-30C to +85C

Starting Torque
0.01 Nm or less (at 20C)

Resolution
1024 PPR (Pulses Per Revolution)

8.KIH50.4A51.1024 Incremental Encoders Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About 8.KIH50.4A51.1024 Incremental Encoders

We offer Encoder Kubler which are used for encoding the electricity into mechanical data. Our Encoder Kubler are designed in such way that these can bear harsh and wear & tear conditions of different industries. The range of encoders is available in distinct models which are cost effective as well. These can be availed in bulk to our clients that too within the stipulated time frame5000 series/5020 series/KIS50 SERIES/KIS40 SERIES

High Precision Sensing for Reliable Feedback

Utilizing optical sensing technology, the 8.KIH50.4A51.1024 provides accurate and consistent position feedback with 1024 pulses per revolution. Its quadrature output (A/B/Z) ensures precise motion tracking, essential for demanding automation and motor control systems. The robust aluminum alloy housing and IP65 rating further strengthen its reliability in industrial environments.

Versatile and Durable Design

This incremental encoder is engineered for a wide range of automation applications. It supports shaft diameters of 8 mm, handles rotational speeds up to 5000 RPM, and operates effectively in temperature extremes. Its anodized surface finish and high vibration resistance (50 m/s2) contribute to a long service life, over 10 million revolutions, making it a dependable choice for continuous operation.

Easy Installation and Connectivity

With its pre-wired 2-meter cable and multiple output signal options (NPN/PNP, Push-Pull, TTL), the encoder allows for straightforward integration into existing systems. Flange mounting and compact dimensions (50 x 45 mm) make installation flexible, while low starting torque and high energy efficiency optimize performance in various control layouts.

FAQ's of 8.KIH50.4A51.1024 Incremental Encoders:

Q: How is the 8.KIH50.4A51.1024 Incremental Encoder typically installed in automation systems?

A: The encoder is designed for flange mounting and comes with a pre-wired 2-meter cable, allowing for secure and straightforward installation in various industrial setups. Its compact size and round shape facilitate integration into motor control assemblies or position feedback systems.

Q: What output signal options are available for this incremental encoder and how do they benefit usage?

A: This encoder supports NPN/PNP Open Collector, Push-Pull, and TTL output signals, along with standard quadrature A/B/Z channels. These options ensure compatibility with a wide range of controllers and provide reliable, high-speed signal transmission for precise motion and position control.

Q: When should you use the 8.KIH50.4A51.1024 encoder in a control system?

A: It is ideal for environments requiring accurate position feedback, such as automation lines, robotic arms, and motor control systems, especially where high resolution (1024 PPR) and durability under harsh conditions are needed.

Q: Where can this encoder perform optimally and withstand environmental challenges?

A: Engineered with an IP65 protection rating, anodized aluminum housing, and high vibration resistance, this encoder is well-suited for demanding industrial environments, including those with high humidity (35-85% RH), dust, or vibration.

Q: What are the benefits of the optical sensing method used in this encoder?

A: The optical sensing method delivers high resolution and accuracy while minimizing wear over time. This results in consistent long-term performance, low maintenance, and over 10 million revolutions of expected lifespan.

Q: How does the encoder ensure reliable operation at different voltages?

A: It is rated for a wide input voltage range of 5-30V DC, with built-in overheating protection. This flexibility allows for easy integration with varied power supplies and enhances overall system safety.
